5G NR High PHY Accelerators

Algorithms for 5G NR

To transfer voice, audio, video or images over a wireless connection, information needs to be converted or digitized and sent over a wireless channel using a carrier frequency. Once this data has been received it is then recreated to match the original transmitted data. In a wireless system this can be very difficult because of the introduction of noise and interference. Several key algorithms are used to help reproduce these signals and minimize data loss.

5G Chip

Channel coding algorithms like LDPC and Polar are used to transmit messages using a coding scheme and cyclic redundancy check that can be used to decode the message. Advanced algorithms like LDPC in the 5G data channel may use additional techniques like Hybrid Automatic Repeat reQuest (HARQ) where additional redundant bits are added to data to be retransmitted.

Other signal processing algorithms that can be used to maximize the reliable reception of data in the wireless channel are Channel Estimation and Channel Equalization.  The Channel Estimator provides information about distortion of the transmitted signal as it propagates through the channel. This information then informs a Channel Equalizer so that the fading effect and/or co-channel interference can be removed and the original transmitted signal recreated.

Equaliser-product-icon

Equalizer

The AccelerComm PUSCH Equalizer is targeted at improving spectral efficiency in solutions that have multiple antennas removing noise and interference. Advanced Equalization algorithms require significant signal processing requirements and are therefore better implemented as hardware acceleration than in a general purpose CPU. This product is an extension to the AccelerComm PUSCH Decoder supporting all the same features including UCI over PUSCH but with the additional integrated Equalizer block.

  • Implemented for 3GPP NR specifications and compliant with TS 38.211 and 38.212
  • Can double spectral efficiency dependant on deployment scenario
  • Reduces cost per bit and lowers system power
  • Integrates advanced equalization with demodulation, LDPC and polar decoding
  • Minimises time to market
  • Available for FPGA and ASIC
Learn More about PUSCH Equalizer
ldpc-product-icon

LDPC

By focussing on 5G NR, we have created an innovative LDPC solution that provides the best of block-parallel and row-parallel architectures, resulting in maximum performance and efficiency. This innovative design combined with configurability enables flexible LDPC decoders with high throughput, low latency, and high hardware efficiency without introducing error floors for high throughput communication systems.

  • Proven in IEEE standards, selected for data channel in 5G NR
  • Complete 3GPP compliant chain
  • 16x latency improvement (to support numerology 4)
  • Supports full code block and transport block processing
  • Open standard software API’s (DPDK) and reference kits
  • Delivered in multiple form factors for ASIC, FPGA and Software only
Learn More about LDPC
polar-product-icon

Polar

This relatively new code base, selected by the 3GPP for 5G NR, is incredibly complex. We have created a unique Polar architecture which enables higher degrees of parallel processing than before. It is easy to integrate, significantly reducing resource and memory usage while delivering excellent BLER performance.

  • Selected for 5G NR control channel
  • Patented IP, complete 3GPP compliant chain
  • High degrees of parallel processing and scalability
  • Superior hardware efficiency and latency reduction
  • Delivered in multiple form factors for ASIC, FPGA and Software only
  • Configurable decoder list size to best fit the BLER/PPA requirements
Learn More about Polar

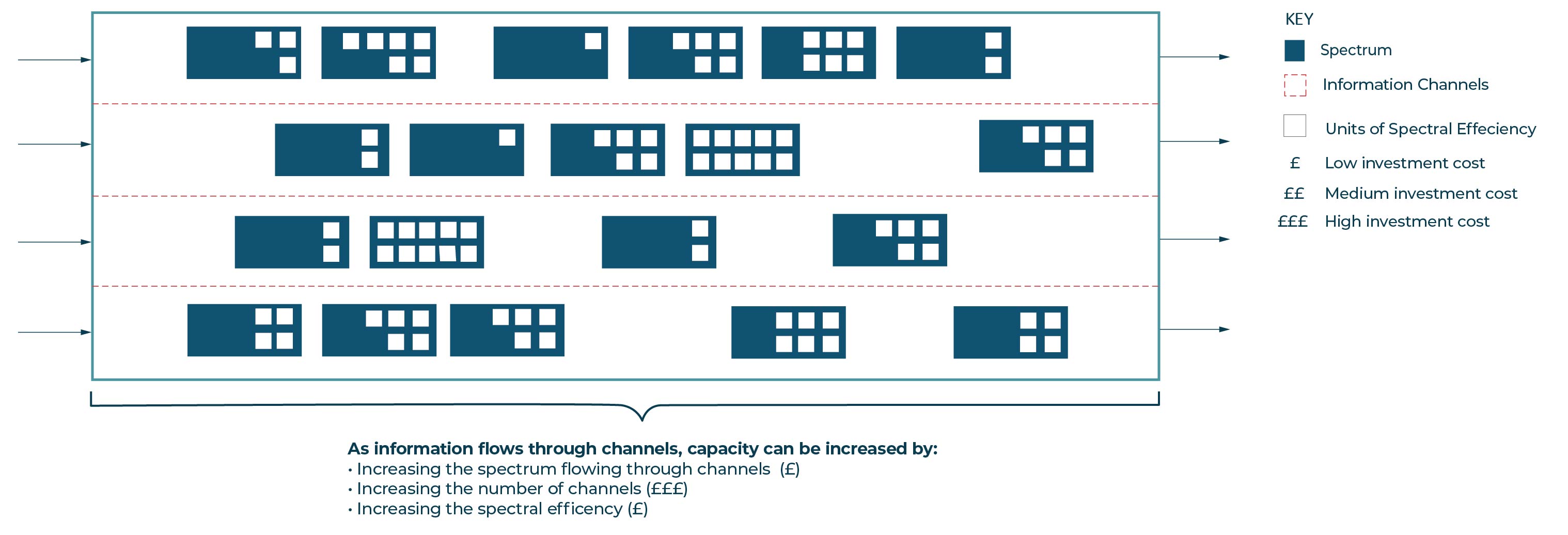

Information highway and Spectrum

Spectral efficiency quantifies the Mbps of  throughput that is achieved in each MHz of spectrum
  • Theoretical capacity of each cell is proportional to spectrum bandwidth
  • More cells enable spectrum reuse
  • Higher spectral efficiency gets you closer to Shannon's limit
  • Advanced Equalization, LDPC and Polar coding techniques can maximize spectral efficiency
